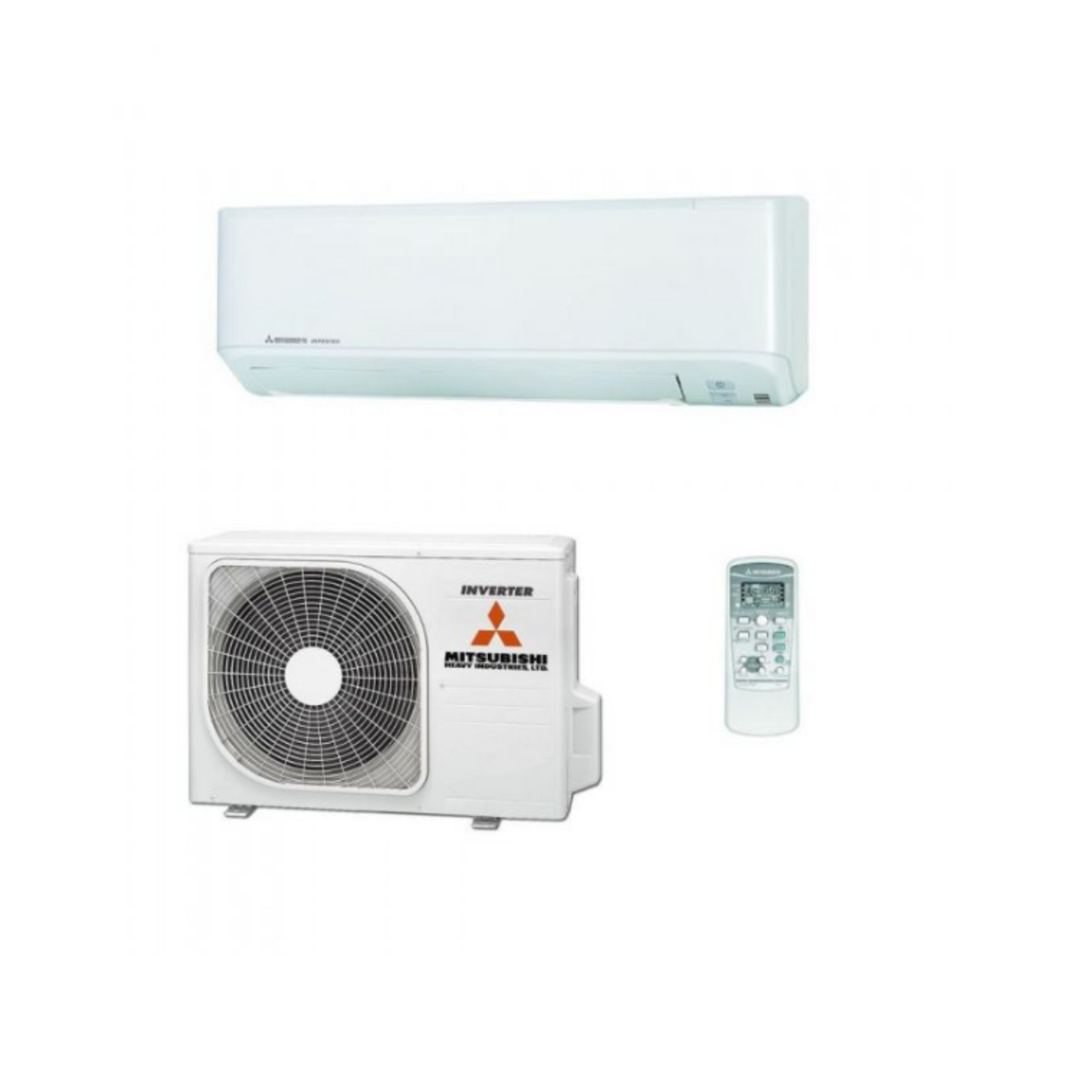

MHI Air Conditioning SRK100ZR-WF Wall Mount Diamond Plus Series with Wi-Fi

MHI Air Conditioning SRK100ZR-WF Wall Mount Diamond Plus Series with Wi-Fi

£2,111.00 GBP
£2,111.00 GBP
Sale Sold out
Shipping calculated at checkout.
Outdoor Unit

Wall Mount Diamond Series:

  • Indoor Unit c/w Controller
  • Outdoor unit

Product Key Features:

  • Wi-Fi Built in with use of Smart M-Air app
  • Weekly Timer/Sleep Timer
  • Allergen Clear Filter + Photo-catalytic Washable Filter
  • Motion Sensor/ECO Operation/Auto Off
  • Auto Flap/Memory Louvre/Vertical & Horizontal Auto Swing
  • Allergen Clear Filter - Effective against Covid!
  • Allergen Clear Operation - Eliminates allergens & bacteria captured in anti-allergen filter in less than 90 minutes.
  • Available in Pure White

Technical Specification

Indoor Unit c/w Controller: SRK100ZR-WF (626090)

Outdoor Unit FDC100VNP-W
627105		 FDC100VNA-W
628071		 FDC100VSA-W
628087		 FDC100VNX-W
628207		 FDC100VSX-W
628211
UK Cooling kW 9.05 9.26 9.26 9.53 9.53
UK Sensible Cooling kW 7.01 7.21 7.01 7.13 7.13
Cooling Range (Nominal) kW 2.1 to 9.6 4.0 to 11.2 4.0 to 11.2 3.5 to 11.2 3.5 to 11.2
S.E.E.R, EER, Energy Label 6.11, 3.10, A++ 6.13, 3.19, A++ 6.13, 3.19, A++ 6.54, 3.65, A++ 6.54, 3.65, A++
Heating Range (Nominal) kW 1.7 to 10.4 4.0 to 12.5 4.0 to 12.5 2.7 to 12.5 2.7 to 12.5
S.C.O.P, COP, Energy Label 4.14, 3.57, A+ 4.33, 3.68, A+ 4.33, 3.68, A+ 4.01, 3.69, A 4.01, 3.69, A
Annual electricity consumption c/h kWh/a 551/2028 571/2746 571/2746 - -
Indoor Unit
Exterior Dimensions (H x W x D) 339 x 1197 x 262 mm 339 x 1197 x 262 mm 339 x 1197 x 262 mm 339 x 1197 x 262 mm 339 x 1197 x 262 mm
Net Weight kg 16.5 16.5 16.5 16.5 16.5
Air Flow (H/M/L) Cooling m3/m 21.3 / 17.6 / 10.4 21.3 / 17.6 / 10.4 21.3 / 17.6 / 10.4 24.5 / 21.3 / 17.6 24.5 / 21.3 / 17.6
Air Flow (H/M/L) Heating m3/m 23.2 / 19.1 / 13.6 23.2 / 19.1 / 13.6 23.2 / 19.1 / 13.6 27.5 / 23.2 / 19.1 27.5 / 23.2 / 19.1
Sound Pressure Level (H/M/L) Cooling db(A) 45 / 40 / 27 45 / 40 / 27 45 / 40 / 27 48 / 45 / 40 48 / 45 / 40
Sound Pressure Level (H/M/L) Heating db(A) 43 / 38 / 30 43 / 38 / 30 43 / 38 / 30 48 / 43 / 38 48 / 43 / 38
Outdoor Unit
Exterior Dimensions (H x W x D) 750 x 880 (+88) x 340 mm 845 x 970 x 370 mm 845 x 970 x 370 mm 1300 x 970 x 370 mm 1300 x 970 x 370 mm
Net Weight kg 57 77 78 97 99
Sound Pressure Level Cooling/Heating db(A) 56 / 54 54 / 55 54 / 55 51 / 51 51 / 51
Electrical Data
Power Source Rating MCB A 25 25 16 per a phase 1ph 30A 3ph 16A/PF
Mains Power To (outdoor) 230V/1ph/50Hz 230V/1ph/50Hz 3 phase 380-415V, 50Hz Outdoor Outdoor
Interconnecting Wires (Dia) (mm2) 3+E (1.5) 3+E (1.5) 3+E (1.5) 3C+E (1.6) 3C+E (1.6)
Start Current / Max Running Current 5 / 19 5 / 24 5 / 15 5 / 15.8 5 / 15.8
Installation/Refrigerant
Ref. Piping Size o.d.ins (mm) Liquid 1/4 (6.35) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Suction 5/8 (15.88) 5/8 (15.88) 5/8 (15.88) 5/8 (15.88) 5/8 (15.88)
Ref. Max Piping Length m 30 50 50 100 100
Vertical Height Difference (Max)
*Outdoor Unit Above/Below Indoor Unit		 20 / 20 50 / 15 50 / 15 50 / 15 50 / 15
Refrigerant Amount Pre-charged kg/ TCO2Eq 1.7 / 1.148 3.3 / 2.228 3.3 / 2.228 4 4
* For Pipe Length Up To m 15 30 30 30 30
Additional Refrigerant g/m 25 54 54 54 54
