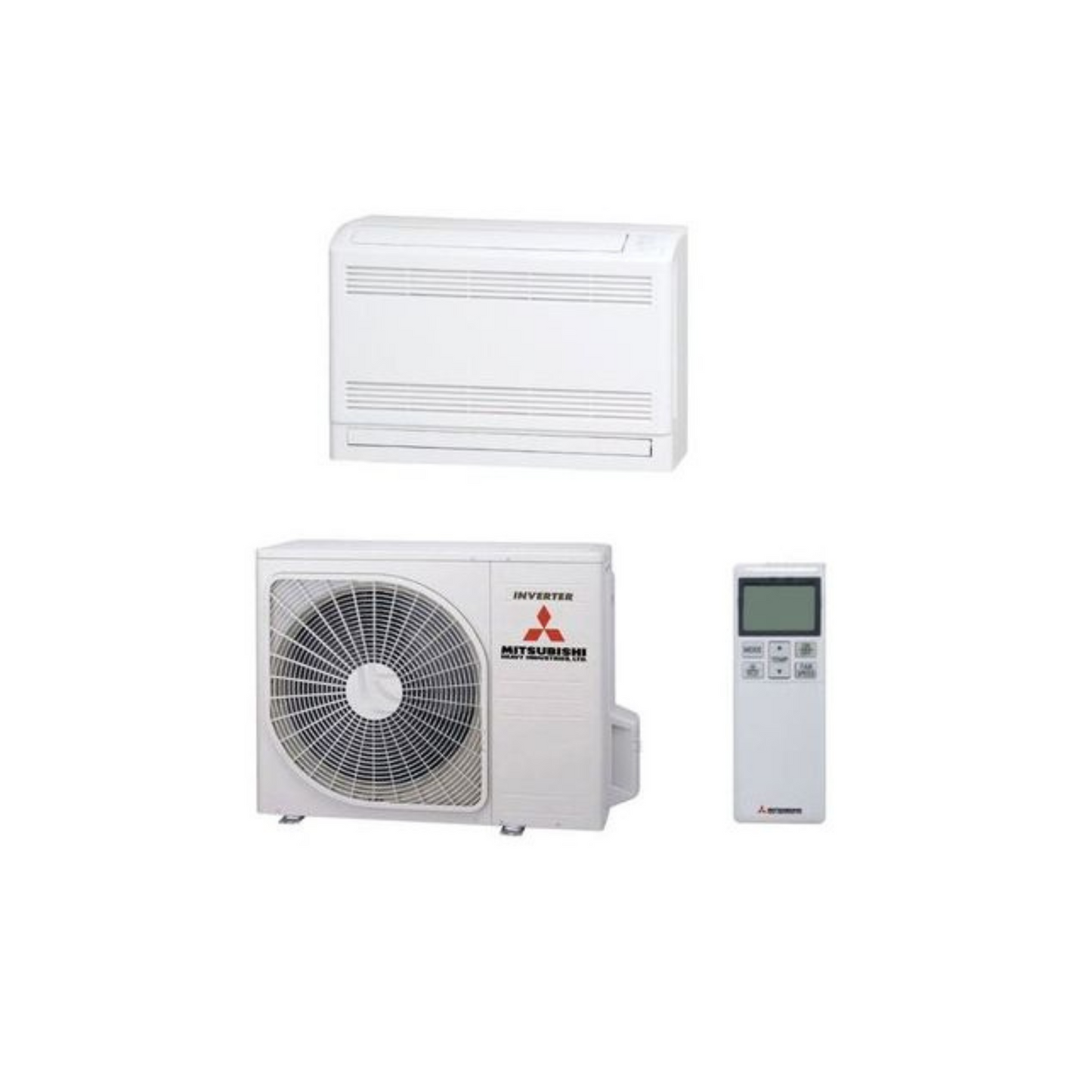

MHI Air Conditioning SRF35ZMX-S Floor Standing Console Unit
MHI Air Conditioning SRF35ZMX-S Floor Standing Console Unit
Couldn't load pickup availability
Product Key Features:
- R410A Refrigerant only
- 24 Hour On/Off Programmable Timer
Technical Specification
| Indoor Unit c/w Controller | SRF35ZMXS-S |
| Outdoor Unit | SRC35ZMX-S |
| UK Cooling kW | 3.1 |
| UK Sensible Cooling kW | 2.47 |
| Cooling Range (Nominal) kW | 0.9 - 4.1 |
| S.E.E.R , EER, Energy Label | 6.75 / 3.93 / A++ |
| Heating Range (Nominal) kW | 0.9 - 5.1 |
| S.C.O.P , COP, Energy Label | 4.26 / 4.0 / A+ |
Indoor Unit
| Exterior Dimensions (H x W x D) | 600 x 860 x 238 |
| Net Weight kg | 19 |
| Air Flow (H/M/L) Cooling m3/m | 9.2 / 7.8 / 7.3 |
| Air Flow (H/M/L) Heating m3/m | 10.7 / 8.3 / 8.1 |
| Sound Pressure Level (H/M/L) Cooling db(A) |
41 / 34 / 33 |
| Sound Pressure Level (H/M/L) Heating db(A) |
41 / 36 / 35 |
Outdoor Unit
| Exterior Dimensions (H x W x D) | 595 x 780 (+62) x 290 |
| Net Weight kg | 35 |
| Sound Pressure Level Cooling/Heating db(A) |
50 / 50 |
Electrical Data
| Power Source Rating MCB A | 16 |
| Mains Power To (outdoor) | 230V/1ph/50Hz |
| Interconnecting Wires (Dia) (mm2) | 3+E (1.5) |
| Start Current | 4.9 |
Installation/Refrigerant
| Ref. Piping Size o.d.ins (mm) | Liquid | 1/4 (6.35) |
| Suction | 3/8 (9.52) | |
| Ref. Max Piping Length m | 15 | |
| Vertical Height Difference (Max) *Outdoor Unit Above/Below Indoor Unit |
10 / 10 | |
| Refrigerant Amount Pre-charged | 1.2 | |
| * For Pipe Length Up To m | 15 | |
| Additional Refrigerant g/m | N/A | |
