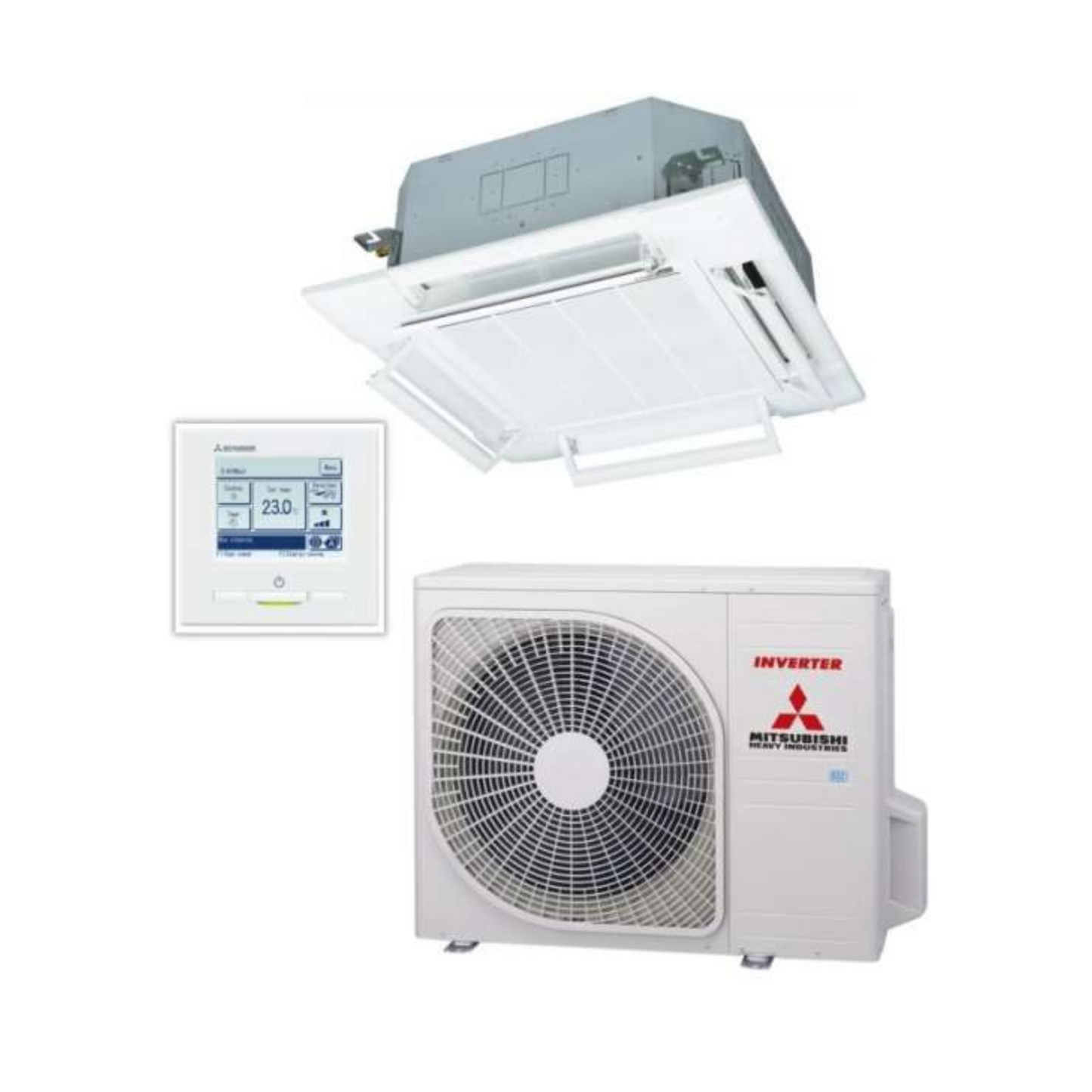

MHI Air Conditioning FDT125VH Standard Cassette

MHI Air Conditioning FDT125VH Standard Cassette

£2,683.00 GBP
£2,683.00 GBP
Sale Sold out
Shipping calculated at checkout.
Outdoor Unit

Product Key Features

  • Motion Sensor Available
  • Draft Prevention Panel Available
  • 850mm Drain Pump

Technical Specification

  • Indoor Unit c/w Controller: FDT125VH
  • Panel: T-PSA-5BW-E
  • Hard Wired Controller: RC-EX3A
Model FDC125VNP FDC125VNA FDC125VSA FDC125VNX FDC125VSX
  Standard Inverter Single Phase Only Micro Inverter Single Phase  Micro Inverter Three phase Hyper Inverter Single phase Hyper Inverter Three phase
UK Cooling kW 11.32 11.58 11.58 11.91 11.91
UK Sensible Cooling kW 8.55 8.64 8.64 8.76 8.76
Cooling Range (Nominal) kW 5 to 12.1 5.0 to 14.0 5.0 to 14.0 3.5 to 14 3.5 to 14
S.E.E.R, EER, Energy Label 6.38, 3.28, A++ 6.53, 3.09 6.53, 3.09 7.64, 3.89, N/A 7.64, 3.89, N/A
Heating Range (Nominal) kW 4 to 13.3 4.0 to 16.00 4.0 to 16.00 2.7 to 17.0 2.7 to 17.0
S.C.O.P, COP, Energy Label 4.27, 3.78, A+ 4.38, 3.90 4.38, 3.90 4.44, 4.08 4.44, 4.08
INDOOR UNIT
Exterior Dimensions (H x W x D) mm 333 x 950 x 950 298 x 840 x 840 298 x 840 x 840 298 x 840 x 840 298 x 840 x 840
Net Weight (Including Panel) kg 30 30 30 30 30
Air Flow (H/M/L) Cooling m3/m 38 / 28 / 25 28 / 25 / 18 28 / 25 / 18 28 / 25 / 18 28 / 25 / 18
Air Flow (H/M/L) Heating m3/m 38 / 28 / 25 28 / 25 / 18 28 / 25 / 18 28 / 25 / 18 28 / 25 / 18
Sound Pressure Level (H/M/L) Cooling db(A) 48 / 41 / 39 41 / 39 / 31 41 / 39 / 31 41 / 39 / 31 41 / 39 / 31
Sound Pressure Level (H/M/L) Heating db(A) 48 / 41 / 38 41 / 38 / 31 41 / 38 / 31 41 / 38 / 31 41 / 38 / 31
OUTDOOR UNIT
Exterior Dimensions (H x W x D) mm 845 x 970 x 370 845 x 970 x 370 845 x 970 x 370 1300 x 970 x 370 1300 x 970 x 370
Net Weight kg 70 77 77 99 99
Sound Pressure Level Cooling/Heating db(A)  57 / 57 54 / 56 54 / 56 68 / 70 53 / 54
ELECTRICAL DATA
Power Source Rating MCB (A) 20 25 16 per a phase 30 16 amp a phase
Mains Power To (Outdoor) 1 Phase 220-240V, 50Hz 1 Phase 220-240V, 50Hz 3 Phase, 380 - 415V
50Hz		 230V/1ph/ 50Hz 3 Phase, 380 - 415V
50Hz
Interconnecting Wires (Dia)  (mm2) 3+E (1.5) 3+E (1.5) 3+E (1.5) 3+E (1.5) 3+E (1.5)
Start Current / Max Running Current (A) 5 / 18 5 / 24 5 / 15 5 / 27 5 / 14
INSTALLATION/REFRIGERANT
Ref. Piping Size o.d.ins (mm) Liquid          3/8
Suction         5/8
Ref. Min Piping Length m - - - 3* 3*
Ref. Max Piping Length m 30 50 50 100 100
Vertical Height Difference (Max)
*Outdoor Unit Above/Below Indoor Unit (m)		 Max. 20 / Max. 20  Max. 50 / Max. 15  50 / 15  50 / 15  50 / 15
Refrigerant Amount Pre-charged (kg/TCO2Eq) 2.2 3.3/2.228 3.3/2.228 4/2.700 4/2.700
* For Pipe Length Up To (m) 15 30 30 30 30

* When the one way pipe run is less than 3m (5m on FDC71VNX-W) remove 0.9kg of refrigerant from the system.
