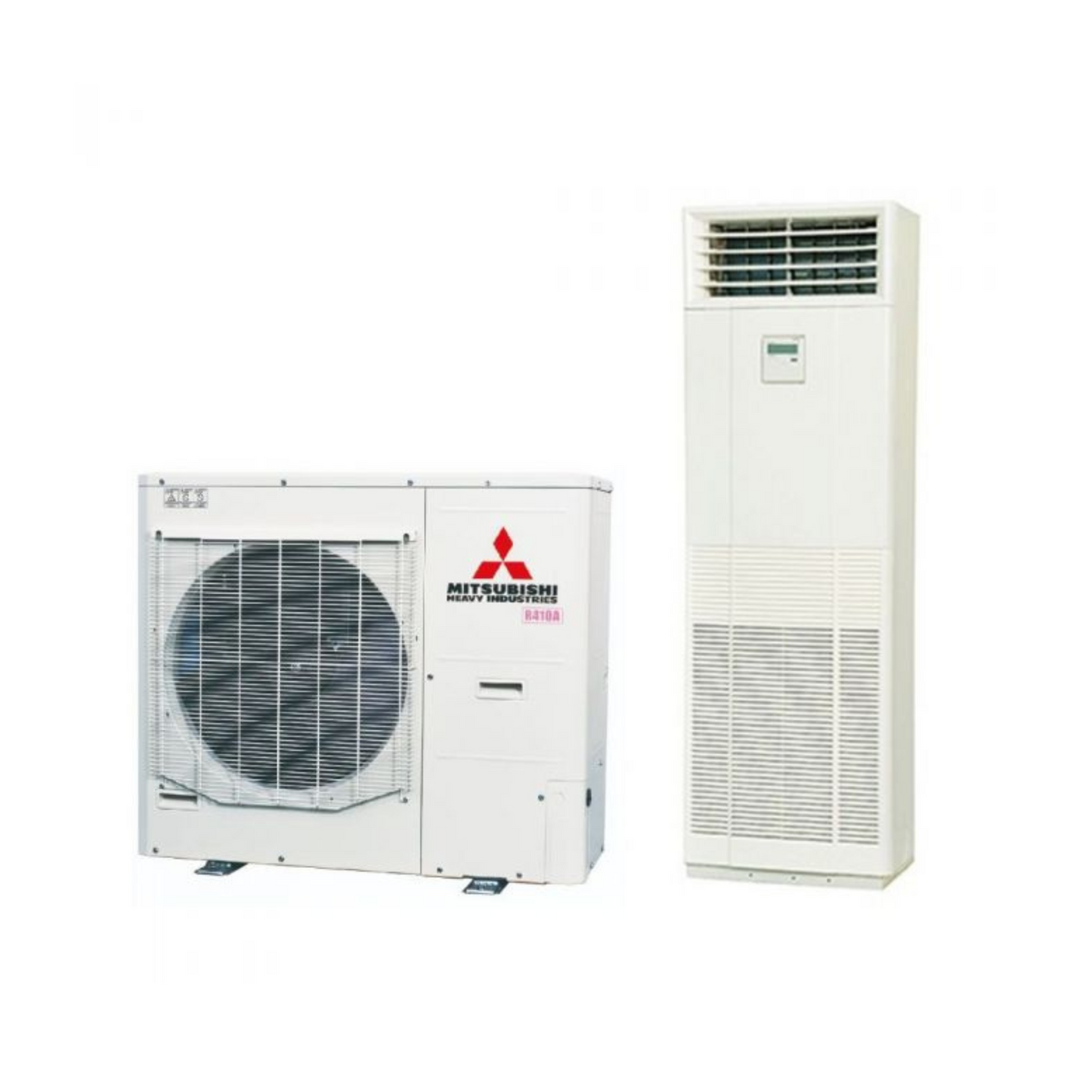

MHI Air Conditioning FDF100VH Floor Mounted Heat Pump
MHI Air Conditioning FDF100VH Floor Mounted Heat Pump
Couldn't load pickup availability
Product Key Features
- R32 Refrigerant Only
- RCEX3A Controller as standard within unit
- Wide & Powerfull Air Flow
Technical Specification
- Indoor Unit: FDF100VH
| Model | FDC100VNP-W | FDC100VNA-W | FDC100VSA-W | FDC100VNX-W | FDC100VSX-W |
| Standard Inverter Single Phase Only | Micro Inverter Single Phase | Micro Inverter Three Phase | Micro Inverter Single Phase | Micro Inverter Three Phase | |
| UK Cooling kW | 9.42 | 9.26 | 9.26 | 9.53 | 9.53 |
| UK Sensible Cooling kW | 10 | 10 | 10 | 10 | 10 |
| Cooling Range (Nominal) kW | 2.1 to 10.2 | 4.0 to 11.2 | 4.0 to 11.2 | 3.5 to 11.2 | 3.5 to 11.2 |
| S.E.E.R , EER, Energy Label | 5.43, 2.95, A | 5.76, 3.25, A+ | 5.76, 3.25, A+ | 6.10, 3.76, A++ | 6.10, 3.76, A++ |
| Heating Range (Nominal) kW | 1.7 to 10.4 | 4.0 to 12.5 | 4.0 to 12.5 | 2.7 to 12.5 | 2.7 to 16.0 |
| S.C.O.P , COP, Energy Label | 3.91, 3.51 | 4.0, 3.81, A+ | 4.0, 3.81, A+ | 3.84, 3.81, A | 3.84, 3.76, A |
| INDOOR UNIT | |||||
| Exterior Dimensions (H x W x D) mm | 1850 x 600 x 329 | 1850 x 600 x 329 | 1850 x 600 x 329 | 1850 x 600 x 329 | 1850 x 600 x 329 |
| Net Weight kg | 49 | 49 | 49 | 49 | 49 |
| Air Flow (H/M/L) Cooling m3/m | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 |
| Air Flow (H/M/L) Heating m3/m | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 |
| Sound Pressure Level (H/M/L) Cooling db(A) | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 |
| Sound Pressure Level (H/M/L) Heating db(A) | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 | 51 / 49 / 44 |
| OUTDOOR UNIT | |||||
| Exterior Dimensions (H x W x D) mm | 750 x 880 (+88) x 340 | 845 x 970 x 370 | 845 x 970 x 370 | 1300 x 970 x 370 | 1300 x 970 x 370 |
| Net Weight kg | 57 | 77 | 77 | 97 | 99 |
| Sound Pressure Level Cooling/Heating db(A) | 52 / 50 | 54 / 55 | 54 / 55 | 53 / 51 | 53 / 51 |
| ELECTRICAL DATA | |||||
| Power Source Rating MCB A | 20 | 25 | 16A per phase | 32 | 16A per phase |
| Mains Power To (outdoor) | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Interconnecting Wires (Dia) (mm2) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Start Current /Max Running Current | 5 | 5 | 5 | 5 | 5 |
| INSTALLATION/REFRIGERANT | |||||
| Ref. Piping Size o.d.ins (mm) Liquid | 1/4" | 3/8" | 3/8" | 3/8" | 3/8" |
| Ref. Piping Size o.d.ins (mm) Suction | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" |
| Ref. Min Piping Length m | - | - | - | - | - |
| Ref. Max Piping Length m | 25 | 50 | 50 | 100 | 100 |
| Vertical Height Difference (Max) *Outdoor Unit Above/Below Indoor Unit | 20/20 | 50/15 | 50/15 | 50/15 | 50/15 |
| Refrigerant Amount Pre-charged (kg/TCO2Eq) | 1.7 | 3.3 | 3.3 | 4 | 4 |
| * For Pipe Length Up To m | 10 | 30 | 30 | 30 | 30 |
| Additional Refrigerant g/m | 20 | 54 | 54 | 54 | 54 |
