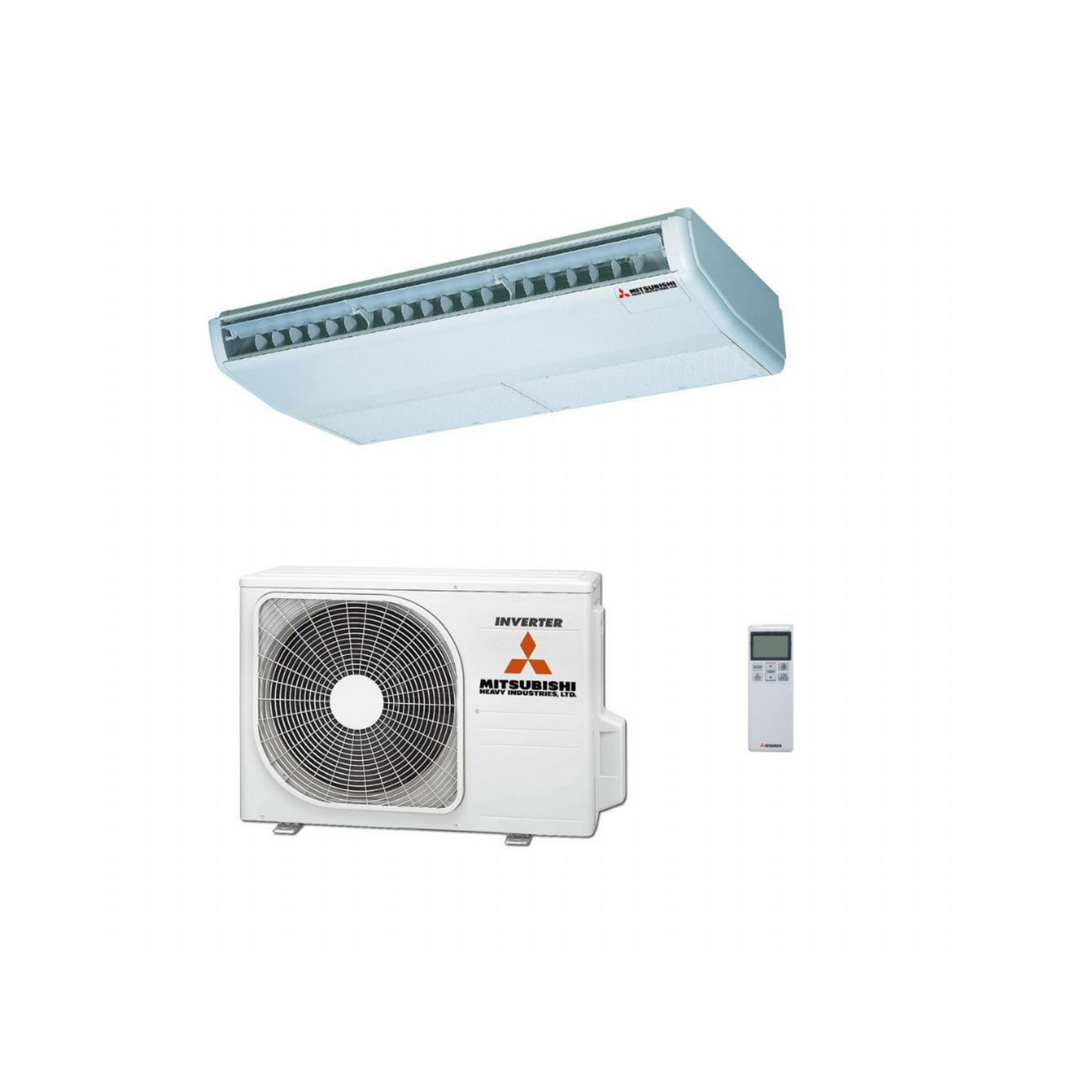

MHI Air Conditioning FDE100VH Ceiling Suspended Series

MHI Air Conditioning FDE100VH Ceiling Suspended Series

£2,306.00 GBP
£2,306.00 GBP
Sale Sold out
Shipping calculated at checkout.
Outdoor unit

Product Key Features

  • Motion Sensor Option Available
  • Reduced Noise Level
  • Reduction in Weight

Technical Specification

  • Indoor Unit c/w Controller: FDE100VH
  • Hard Wired Controller: RC-EX3A
Outdoor unit FDC100VNP FDC100VNA FDC100VSA FDC100VNX FDC100VSX
UK Cooling kW 9.49 9.38 9.38 9.53 9.53
UK Sensible Cooling kW 7.78 7.78 7.78 7.94 7.94
Cooling Range (Nominal) kW 2.1 to 10.2 4.0 to 11.2 4.0 to 11.2 3.5 to 11.2 3.5 to 11.2
S.E.E.R, EER, Energy Label 6.63, 3.33, A++ 6.67, 3.51, A++ 6.67, 3.51, A++ 7, 4.29, A++ 7, 4.29, A++
Heating Range (Nominal) kW 1.7 to 10.4 4.0 to 12.5 4.0 to 12.5 2.7 to 12.5 2.7 to 16.0
S.C.O.P, COP, Energy Label 4.24, 4.24, A+ 4.31, 4.41, A+ 4.31, 4.41, A+ 4.24, 4.45, A+ 4.24, 4.45, A+
INDOOR UNIT
Exterior Dimensions (H x W x D) mm 250 x 1,620 x 690
Net Weight kg 43
Air Flow (H/M/L) Cooling m3/m 26 / 21 / 16.5
Air Flow (H/M/L) Heating m3/m 26 / 21 / 16.5
Sound Pressure Level (H/M/L) Cooling db(A) 43 / 38 / 34
Sound Pressure Level (H/M/L) Heating db(A) 43 / 38 / 34
OUTDOOR UNIT
Exterior Dimensions (H x W x D) mm 750 x 880(+88) x 340 845 x 970 x 370 845 x 970 x 370 1300 x 970 x 370 1300 x 970 x 370
Net Weight kg 57 77 78 97 99
Sound Pressure Level Cooling/Heating db(A)  56 / 54 54 / 55 54 / 65 53 / 51 53 / 51
ELECTRICAL DATA
Power Source Rating MCB A 20 25 16 per a phase 25 16 per a phase
Mains Power To - Outdoor 1 Phase 220-240V,
50Hz		 1 Phase 220-240V,
50Hz		 3 Phase, 380 - 415V
50Hz		 230V/1ph/50Hz 3 Phase, 380 - 415V
50Hz
Interconnecting Wires (Dia) (mm2) 3+E (1.5) 3+E (1.5) 3+E (1.5) 3+E (1.5) 3+E (1.5)
Start Current / Max Running Current A 5 / 19 5 / 24 5 / 15 5 / 25 5 / 14
INSTALLATION/REFRIGERANT
Ref. Piping Size o.d.ins (mm) - Liquid 1/4* 3/8 3/8 3/8 3/8
Ref. Piping Size o.d.ins (mm) - Suction 5/8 5/8 5/8 5/8 5/8
Ref. Min Piping Length m -  -  -  3** 3**
Ref. Max Piping Length m 30 50 50 100 100
Vertical Height Difference (Max)
*Outdoor Unit Above/Below Indoor Unit m		 20 / 20 50 / 15 50 / 15 50 / 15 50 / 15
Refrigerant Amount Pre-charged (kg/TCO2Eq) 1.7 / 1.148 3.3 / 2.228 3.3 / 2.228 4 / 2.700 4 / 2.700
* For Pipe Length Up To 15 30 30 30 30
Additional Refrigerant 20 54 54 54 54

*Reducer included with outdoor for connection to indoor

** When the one way pipe run is less than 3m (5m on FDC71VNX-W) remove 0.9kg of refrigerant from the system.
