Freor Jupiter Vision Fruit & Vegetables
Freor Jupiter Vision Fruit & Vegetables

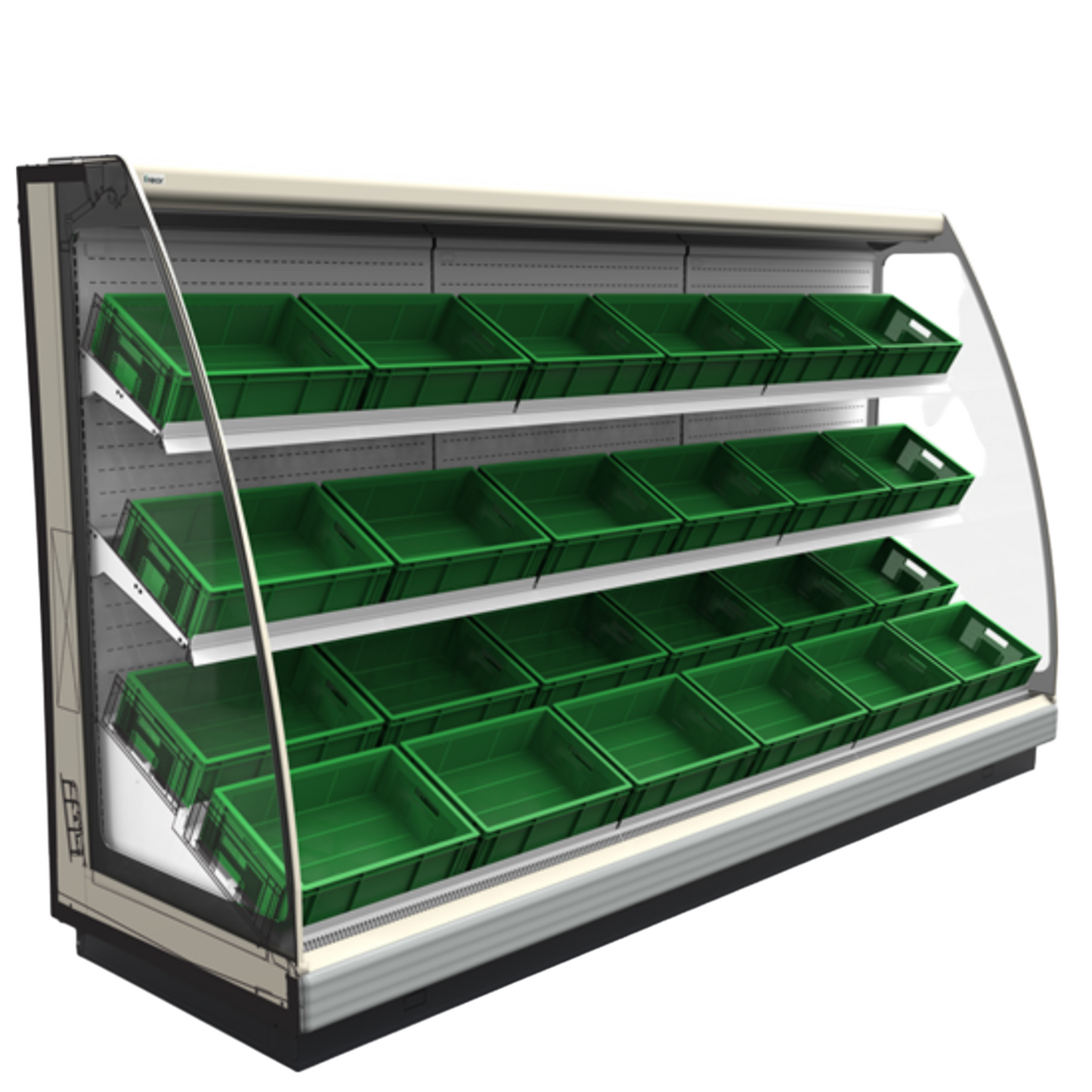

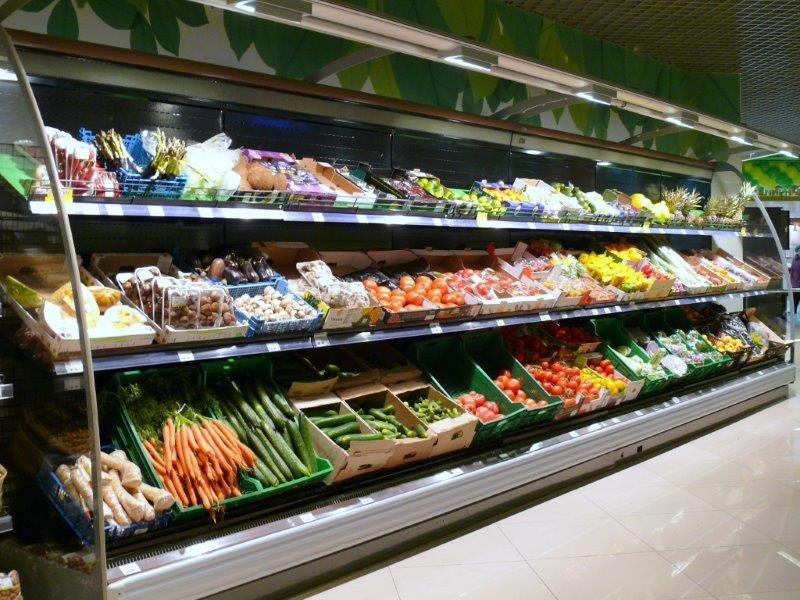

This elegant open chiller JUPITER VISION has an ergonomic design and provides perfect visibility, making products on display the main priority of visual impact. Its compact canopy lighting, panoramic sidewalls and cascade shelving (optional) guarantee perfect visibility from every angle. The optional specific construction of shelves with boxes provides the best way to display fruits and vegetables in a vertical approach. JUPITER VISION features wide-open display area and is also suitable for the preservation and display of prepacked meat, and delicacies.
Standard
- Sturdy construction suitable for huge loads
- Alternative depths and heights
- Plastic bumper
- Multiplexable device
- Canopy lighting
- Wide choice of colours for the exterior and interior (RAL palette)
- Electronic temperature controller with a digital display
- Energy-saving electronically commutated fans
- Polyurethane thermal insulation CFC free.
Accessories
- Price holder
- Hooks
- Hooks with price holder
- “Spider” hooks
- Shelf cover
- Shelf board
- Wire shelf board
- Metal shelf divider
- Plexiglass fence for shelf
- Wire fence for shelf
- Wire fence for bottom deck
- Wire divider for bottom deck
- Wire bottom basket
- Wire bottom deck
- Wire bottom deck inclined
- Night Blinds.
Options
- Stylish external lighting
- Upper interior lighting
- LED shelf illumination
- Front glass packet (saves up to 15 % of energy)
- Plastic boxes for fruits and vegetables.
- Stainless steel bottom protection
- Endwall alternatives (panoramic; semi-panoramic; solid)
- Solid or mirrored inner side panel
- Manual night blinds
- Defrost heater.
Technical specifications

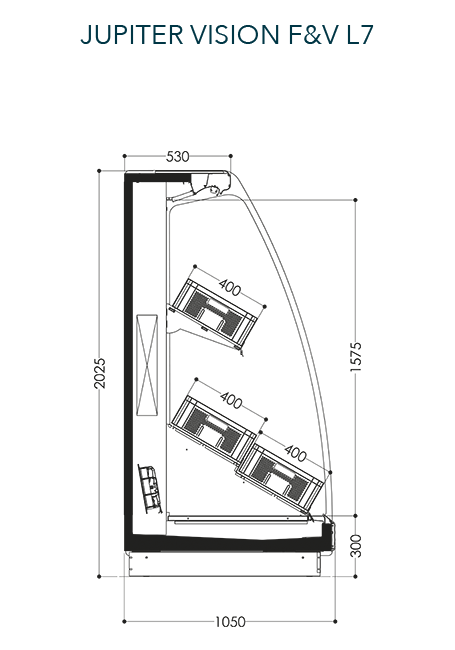

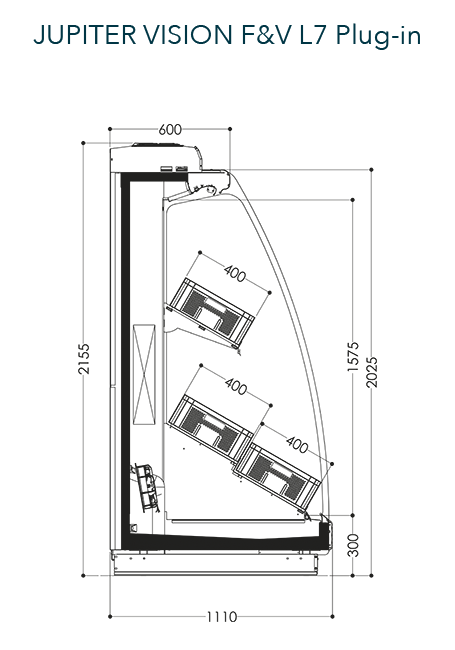

Jupiter Vision F&V L7 /Jupiter Vision F&V L7 plug-in
| Length without end walls, mm | Temperature range, ºC (+25 ºC, 60 % RH) | Exposition space, m² | Volume, m³ | Rated voltage, V |
| 1250 | 1…10 / -1…7 ºC H1 / M2 |
2.81 | 1.10 | 230 / 400 |
| 1880 | 4.23 | 1.64 | ||
| 2200 | 4.95 | 1.92 | ||
| 2500 | 5.63 | 2.19 | ||
| 3750 | 8.44 | 3.29 |

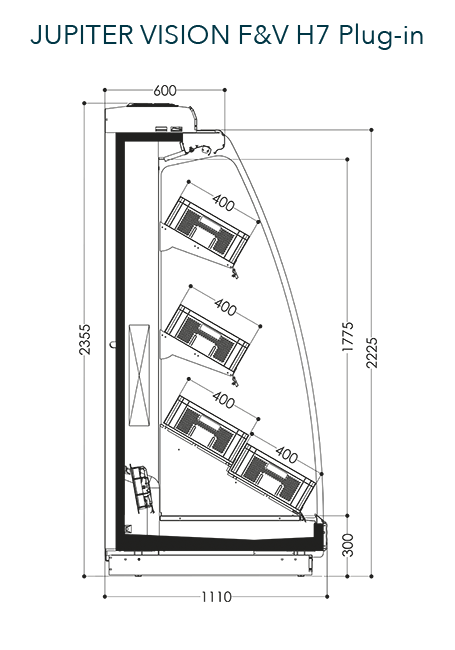

Jupiter Vision F&V H7 /Jupiter Vision F&V H7 plug-in
| Length without end walls, mm | Temperature range, ºC (+25 ºC, 60 % RH) | Exposition space, m² | Volume, m³ | Rated voltage, V |
| 1250 | 1…10 / -1…7 ºC H1 / M2 |
3.19 | 1.25 | 230 / 400 |
| 1880 | 4.79 | 1.87 | ||
| 2200 | 5.61 | 2.19 | ||
| 2500 | 6.38 | 2.50 | ||
| 3750 | 9.56 | 3.74 |

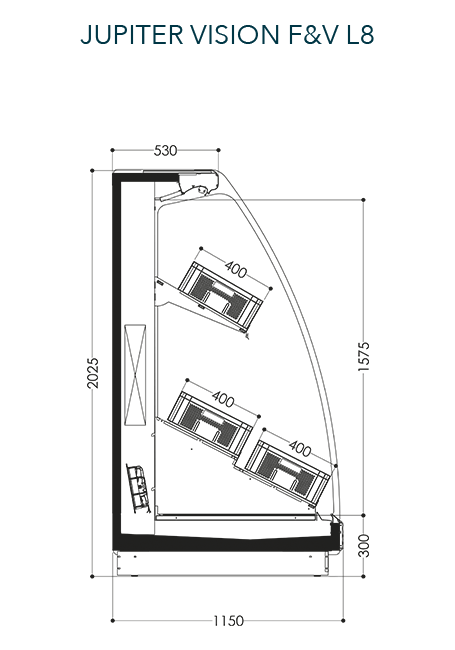

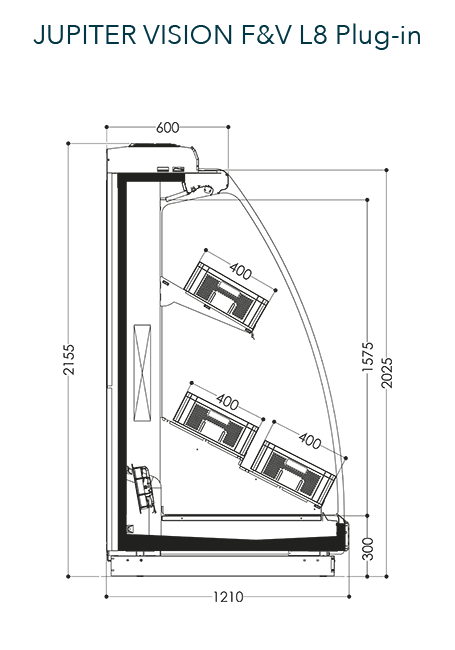

Jupiter Vision F&V L8 /Jupiter Vision F&V L8 plug-in
| Length without end walls, mm | Temperature range, ºC (+25 ºC, 60 % RH) | Exposition space, m² | Volume, m³ | Rated voltage, V |
| 1250 | 1…10 / -1…7 ºC H1 / M2 |
3.25 | 6.50 | 230 / 400 |
| 1880 | 4.89 | 1.85 | ||
| 2500 | 6.50 | 2.47 | ||
| 3750 | 9.75 | 3.70 |

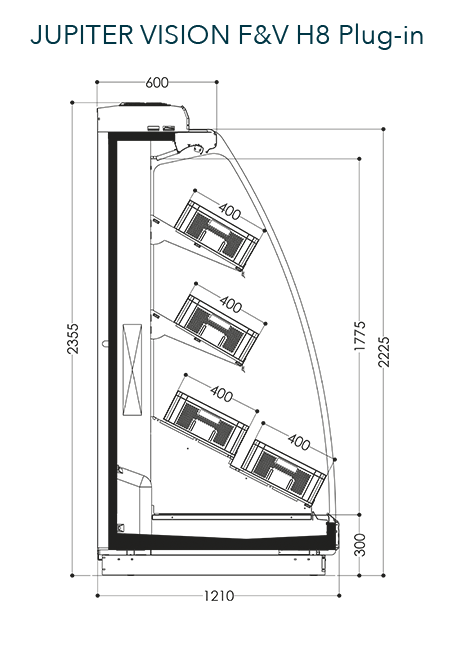

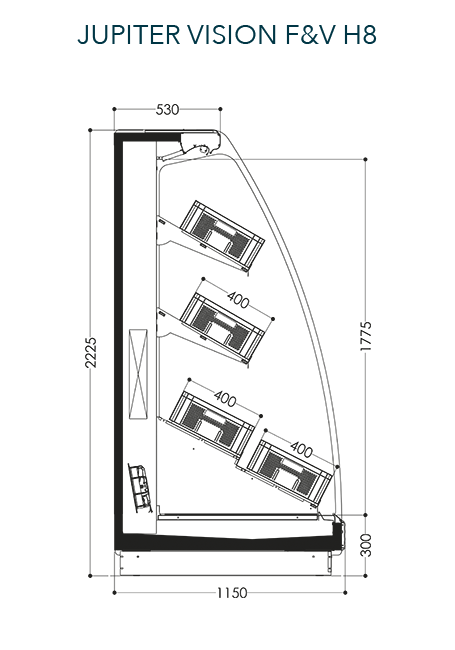

Jupiter Vision F&V H8 /Jupiter Vision F&V H8 plug-in
| Length without end walls, mm | Temperature range, ºC ( +25 ºC, 60 % RH) | Exposition space, m² | Volume, m³ | Rated voltage, V |
| 1250 | 1…10 / -1…7 ºC H1 / M2 |
3.69 | 1.37 | 230 / 400 |
| 1880 | 5.55 | 2.05 | ||
| 2500 | 7.38 | 2.74 | ||
| 3750 | 11.06 | 4.11 |
