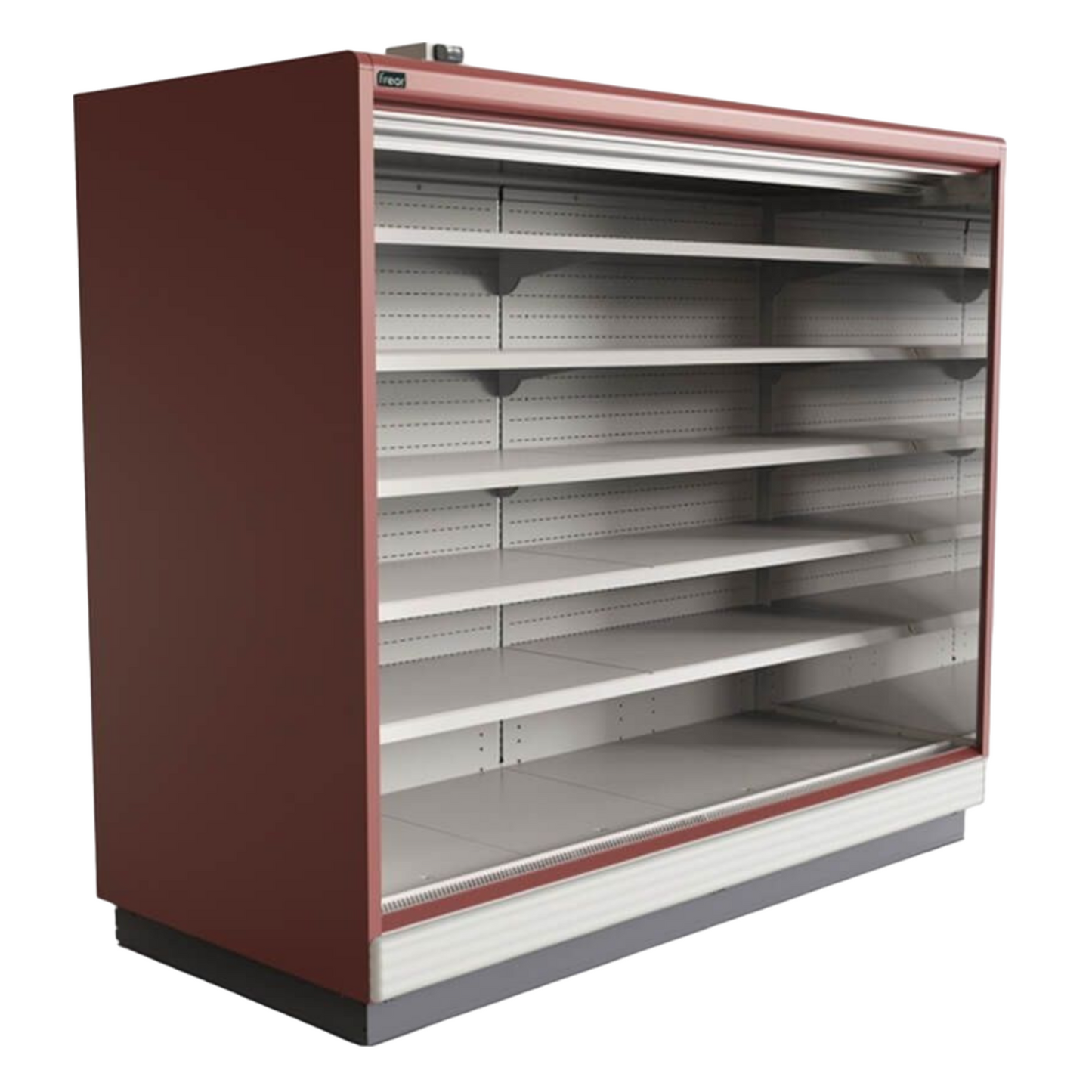

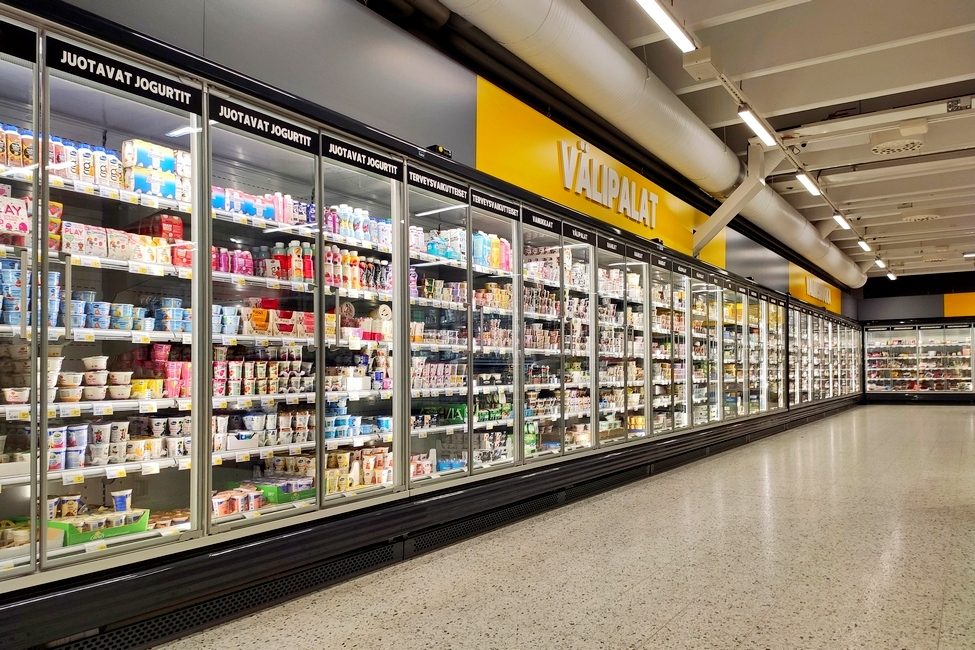

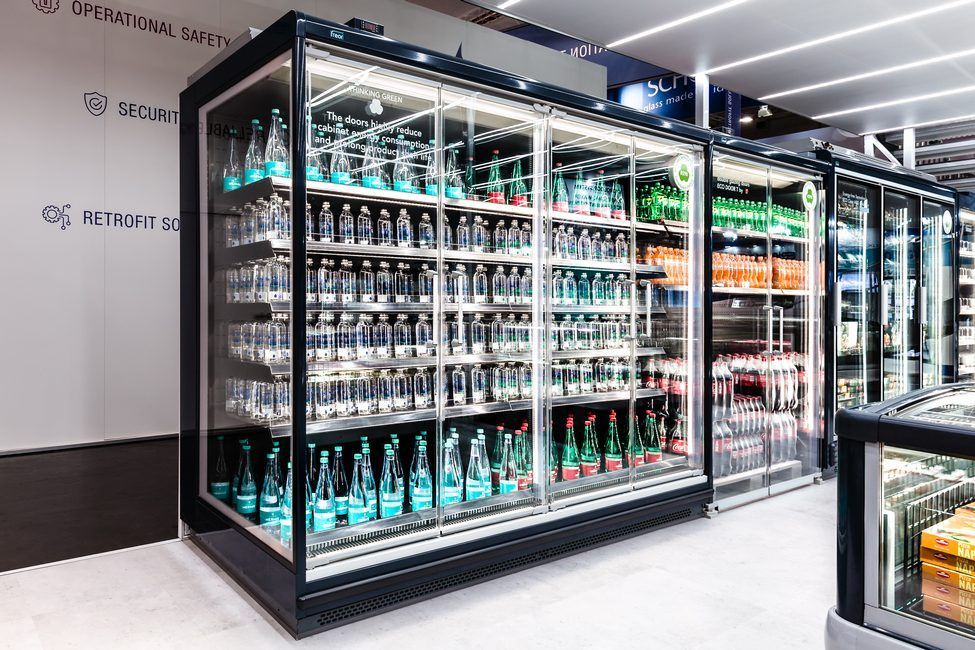

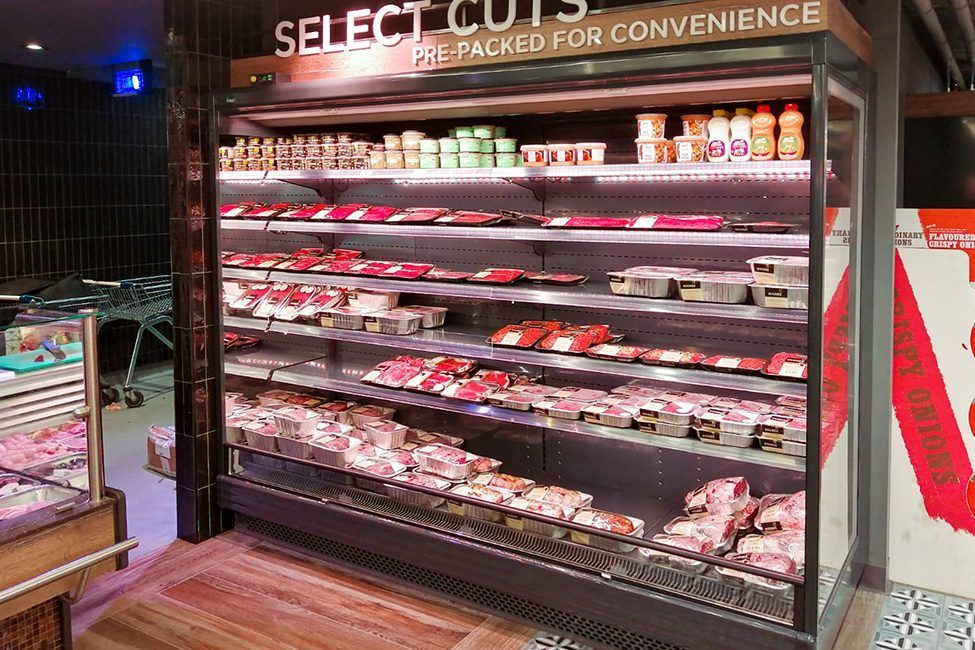

This large capacity chiller cabinet provides an excellent presentation for any product put on display. Thanks to extensive options of cabinet configurations and accessories, JUPITER is an ideal solution for each store type and each product range. Balanced cold air circulation between the shelves ensures the perfect preservation of merchandise. The powder-coated, zinc-plated metal (1.4 mm thickness) construction serves as a guaranty for durability. Dual air curtains help save energy. A version of a multideck chiller with doors can be ordered for better energy efficiency or open version – for a high sales turnover. Night blinds available for reduced energy consumption. This multideck chiller is multiplexable, can be joined into rows or form a separate island.

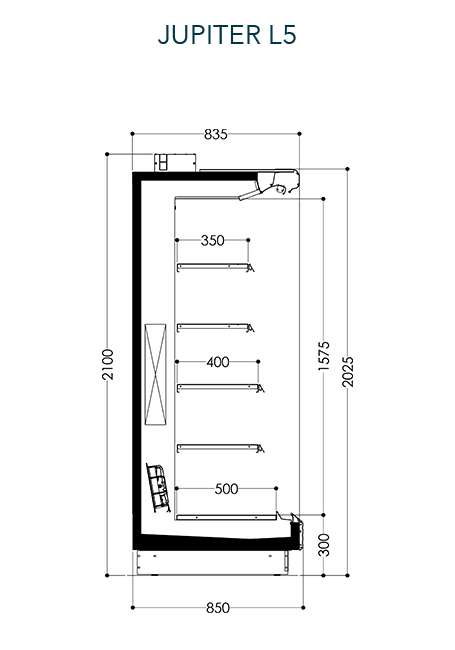

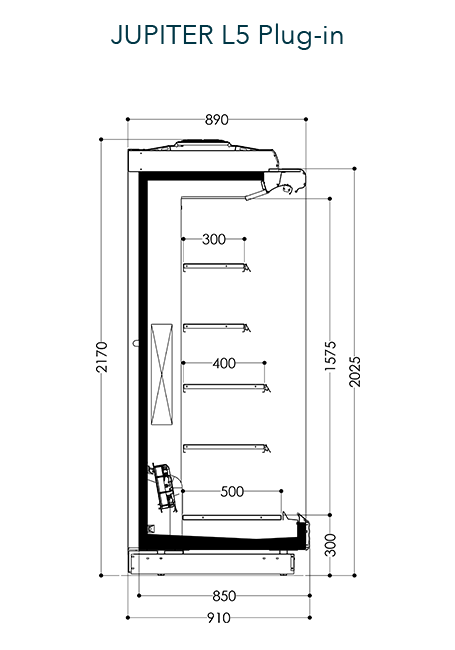

Jupiter L5 / Jupiter plug-in L5
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
2.56 | 0.98 | 230 / 400 |
| 1880 | 3.84 | 1.48 | ||
| 2500 | 5.13 | 1.96 | ||
| 3750 | 7.69 | 2.94 |

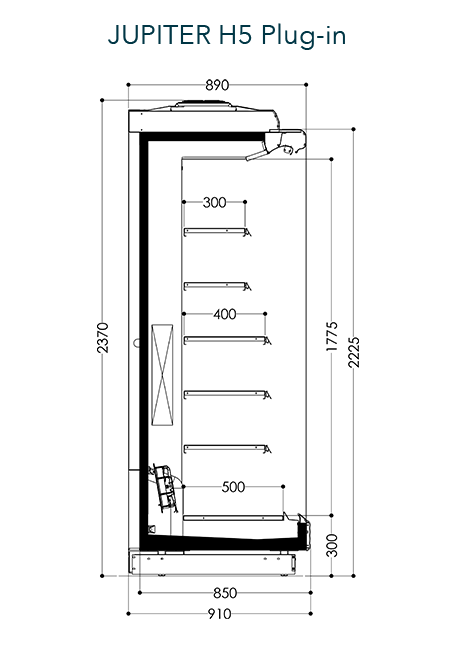

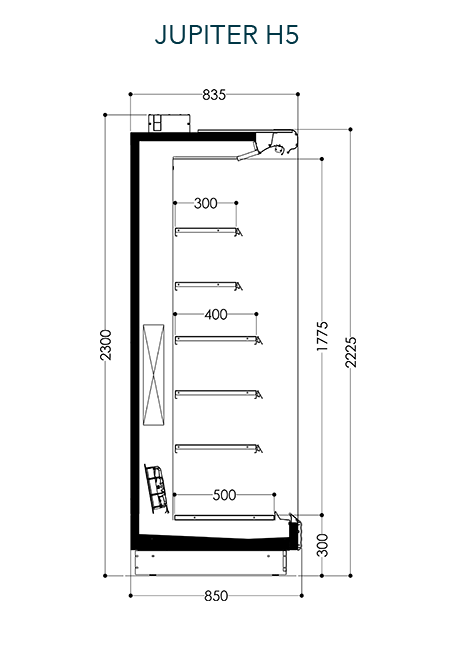

Jupiter H5 / Jupiter plug-in H5
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
3.06 | 1.11 | 230 / 400 |
| 1880 | 4.59 | 1.66 | ||
| 2500 | 6.13 | 2.21 | ||
| 3750 | 9.19 | 3.32 |

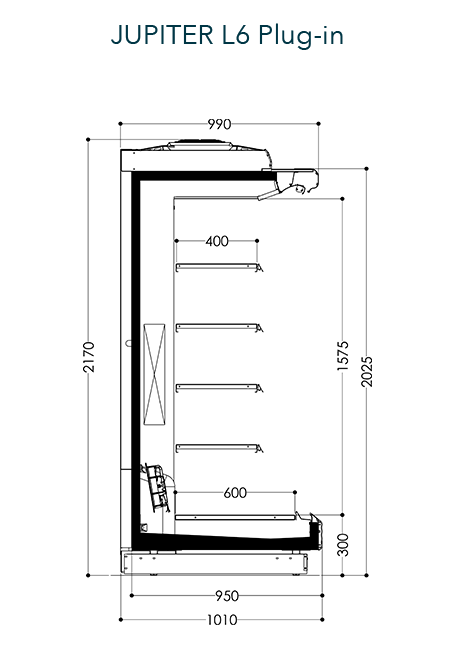

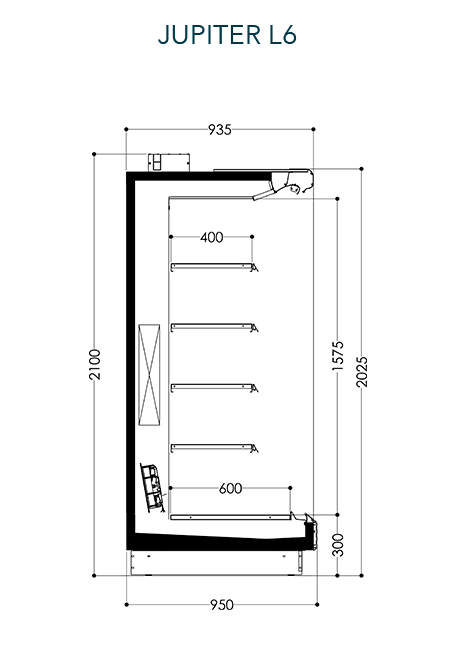

Jupiter L6 / Jupiter plug-in L6
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
2.75 | 1.18 | 230 / 400 |
| 1880 | 4.14 | 1.77 | ||
| 2500 | 5.50 | 2.36 | ||
| 3750 | 8.25 | 3.53 |

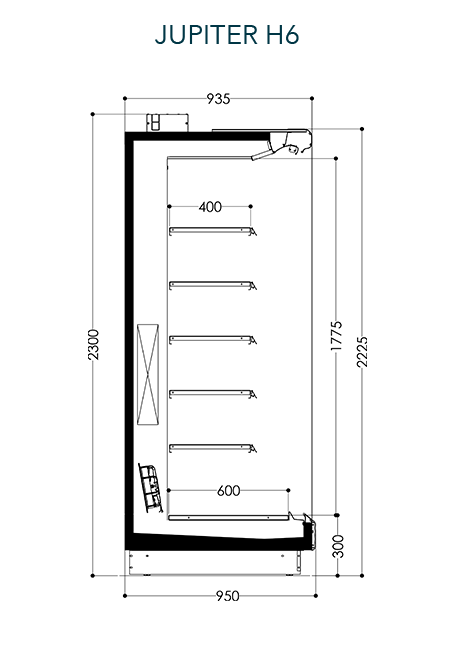

Jupiter H6 / Jupiter plug-in H6
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
3.25 | 1.33 | 230 / 400 |
| 1880 | 4.88 | 2.00 | ||
| 2500 | 6.50 | 2.66 | ||
| 3750 | 9.75 | 3.98 |

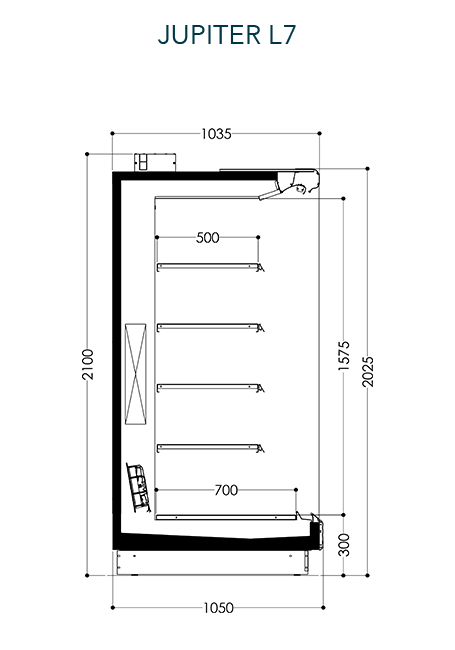

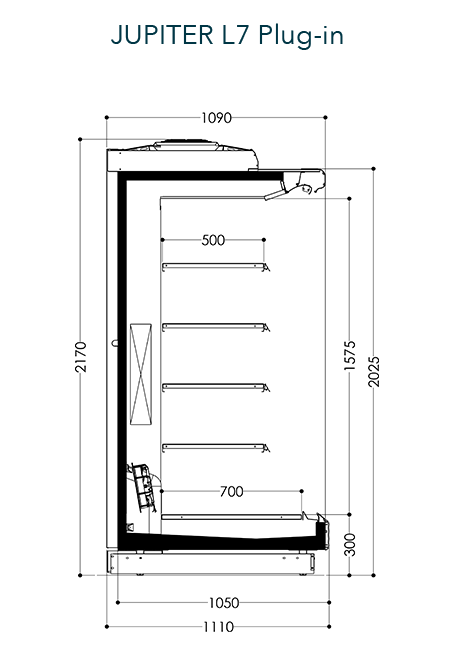

Jupiter L7 / Jupiter plug-in L7
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
3.38 | 1.37 | 230 / 400 |
| 1880 | 5.08 | 2.07 | ||
| 2200 | 5.94 | 2.80 | ||
| 2500 | 6.75 | 2.75 | ||
| 3750 | 10.13 | 4.12 |

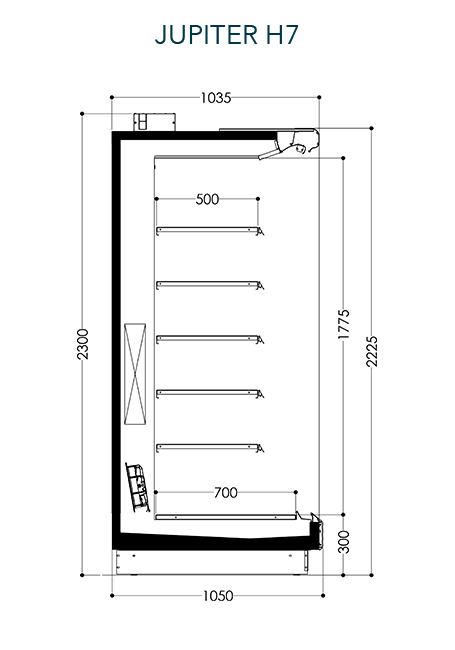

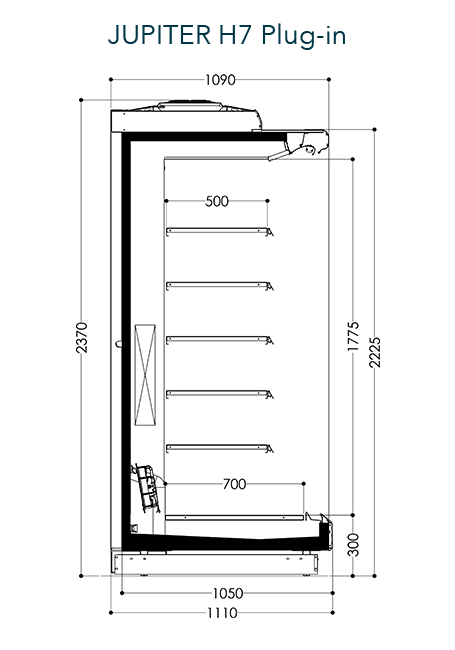

Jupiter H7 / Jupiter plug-in H7
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
4.00 | 1.55 | 230 / 400 |
| 1880 | 6.02 | 2.33 | ||
| 2200 | 7.04 | 2.73 | ||
| 2500 | 8.00 | 3.10 | ||
| 3750 | 12.00 | 4.64 |
Jupiter L8 / Jupiter plug-in L8
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
4.00 | 1.57 | 230 / 400 |
| 1880 | 6.02 | 2.36 | ||
| 2500 | 8.00 | 3.14 | ||
| 3750 | 12.00 | 4.71 |

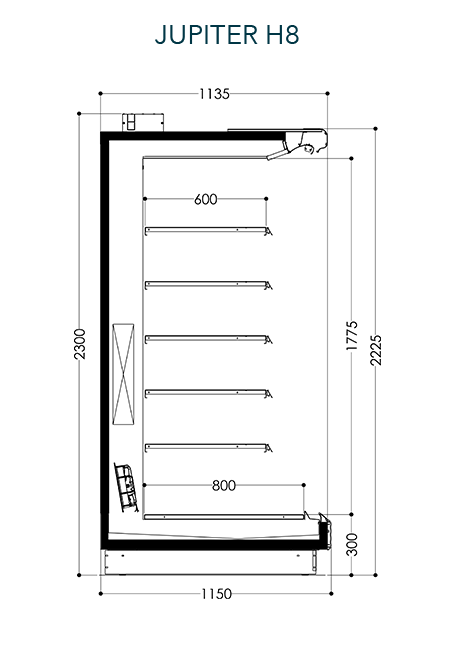

Jupiter Low Front H8 / Jupiter Low Front plug-in H8
| Length without end walls (mm) | Temperature range ºC (+25ºC, 60% RH) | Exposition space (m²) | Volume (m³) | Rated voltage (V) |
| 1250 |
1…10 / -1…7 / -1…5 /-1…4 H1 / M2 / M1 / M0* |
4.75 | 1.77 | 230 / 400 |
| 1880 | 7.14 | 2.66 | ||
| 2500 | 9.50 | 3.54 | ||
| 3750 | 14.25 | 5.31 |
*not available for all modifications
