Ecodan 4kW Monobloc Air Source Heat Pump with Thermal Stove - QUHZ-W40VA

Ecodan 4kW Monobloc Air Source Heat Pump with Thermal Stove - QUHZ-W40VA

£4,418.00 GBP
£4,418.00 GBP
Sale Sold out
Shipping calculated at checkout.

The Ecodan QUHZ system combines a 4kW outdoor unit with a 200 litre Thermal Store and is the ideal plug and play heating and hot water solution for properties with a low space heating requirement.

With very low market leading noise levels for its class and highly efficient hot water generation due to its unique CO2 (R744) system design, this compact space saving product is capable of providing instantaneous hot water and removes the risk of legionella.

Solution Key Features

  • Self contained system, only requires water connections and can be powered via the Thermal Store
  • No need for gas supply, flues or ventilation
  • Low maintenance and very quiet operation
  • Operates with outside temperatures as low as -15°C
  • Simple grid connection as classified as Connect & Notify
  • Capable of being used in domestic hot water generation mode only
  • MELCloud Wi-Fi connectivity and energy monitoring as standard
  • Optimised low ambient defrost control and operation

Key Technical Features

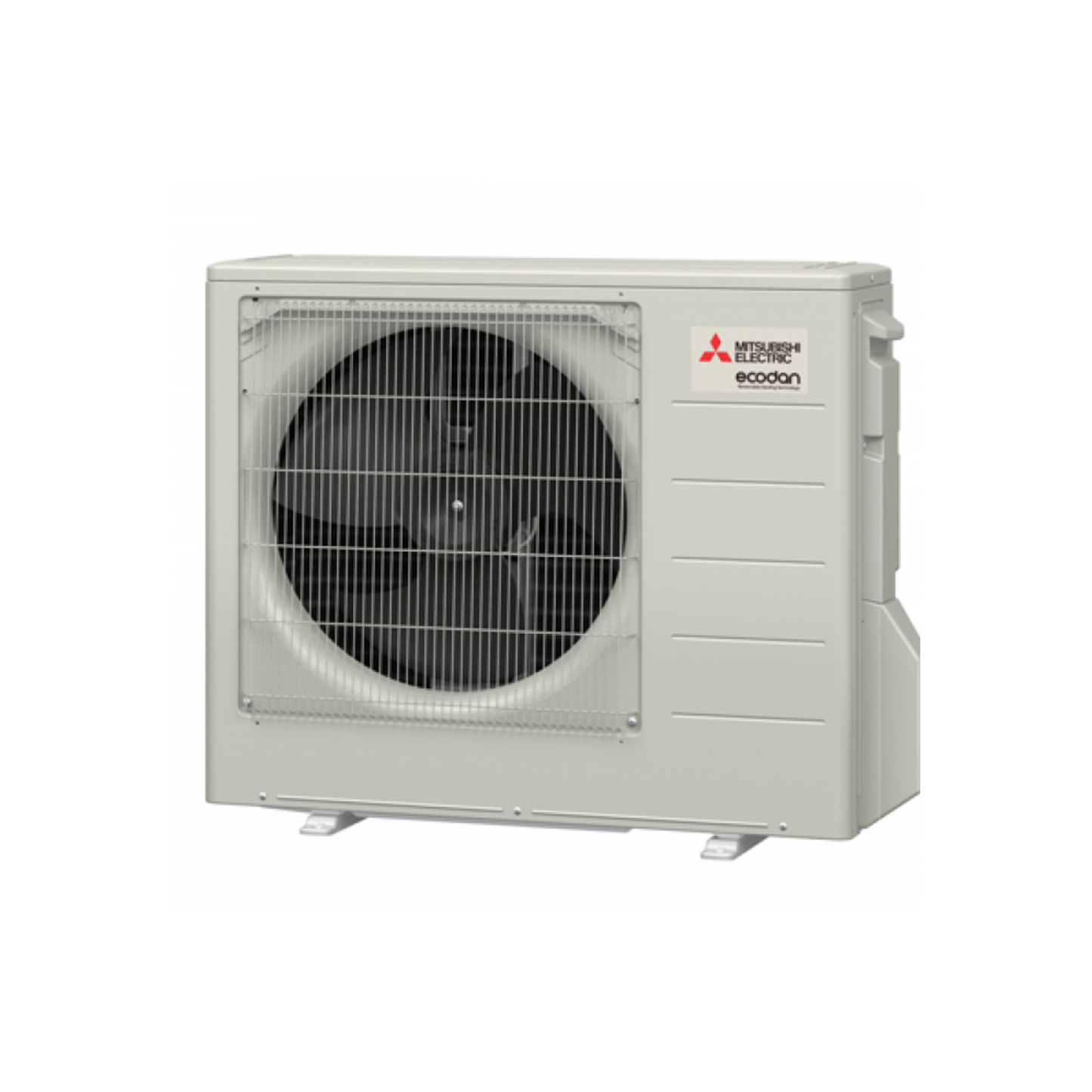

Outdoor Unit

  • Dimensions HxWxD (mm): 715 x 809 x 300
  • Sound Pressure Level at 1m: 43 dBA
  • ErP: A+ (55ºC)
  • Powered via Indoor Unit (20A breaker)
  • Recommended pipe size: 15mm
  • Nominal flow rate: 6L/min

Indoor Unit

  • Dimensions HxWxD (mm): 1600 x 595 x 680
  • Breaker (A): 20
  • Pipe Size (mm): 22

4kW R744 1PH Mono ASHP Low GWP & 200L Thermal Store Cylinder Pkg

Included components - Electrical

  • Wi-Fi Ready System Controller
  • Wi-Fi Interface
  • Thermal Store Upper & Lower Water Temperature Thermistor
  • Flow & Return Water Temperature Thermistor
  • Flow Water Temperature Thermistor
  • DHW Supply Temperature Thermistor

Included components - Mechanical

  • Magnetic Filter
  • Insulated Flexible Connection Pipes
  • Flow Sensor (x3)
  • Heating Circulating Pump
  • Thermal Store Circulating Pump
  • 3-Way Motorised Diverter Valve
  • Primary Expansion Vessel
  • DHW Plate Heat Exchanger
  • Primary System Pressure Gauge
  • Filling Loop
  • Automatic Air-Vent
  • Drain Valve
  • Strainer Valve
  • Primary Pressure Relief Valve
  • Tundish
