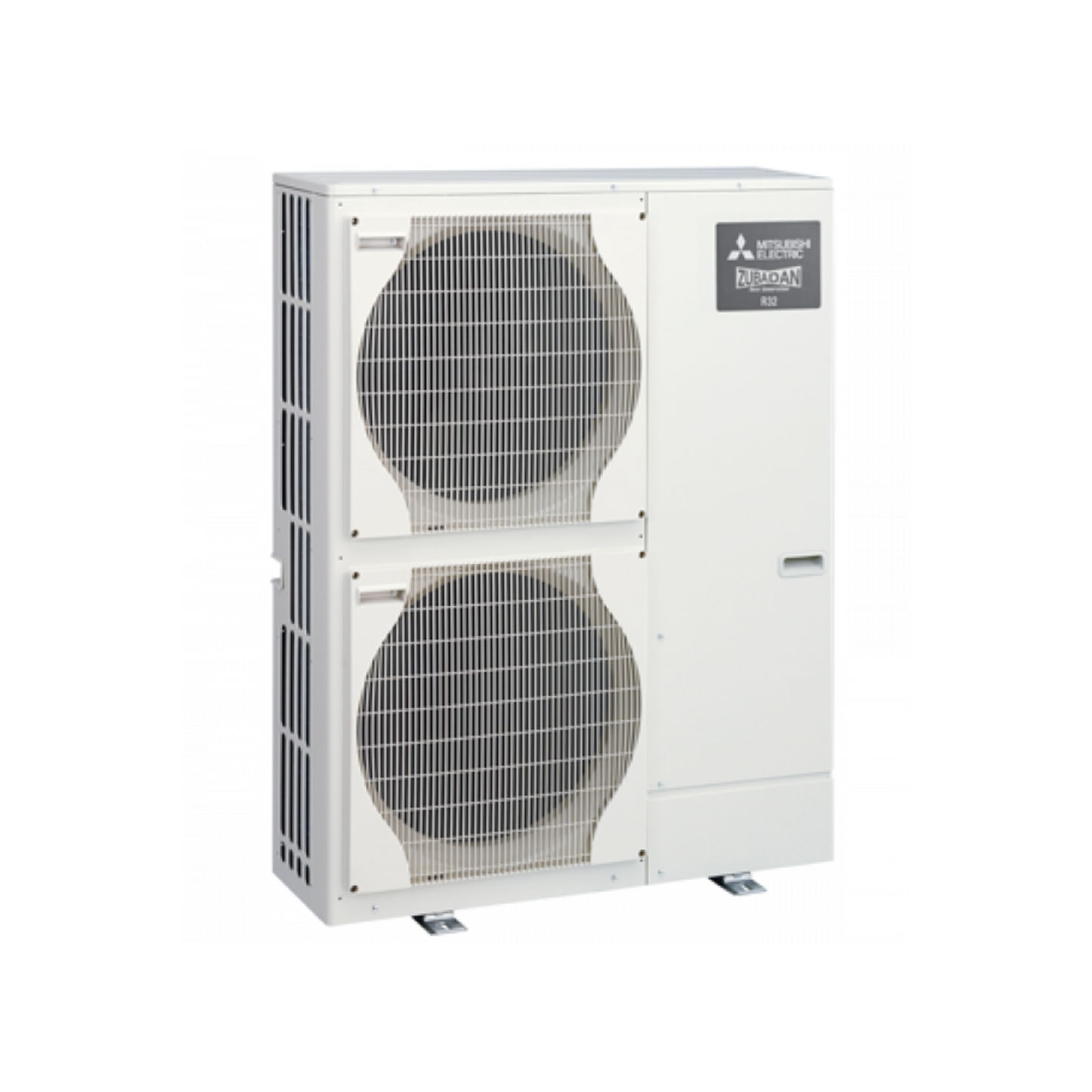

Ecodan 14kW 1Ph Monobloc Air Source Heat Pump - PUZ-HWM140VHA

Ecodan 14kW 1Ph Monobloc Air Source Heat Pump - PUZ-HWM140VHA

£7,101.00 GBP
£7,101.00 GBP
Sale Sold out
Shipping calculated at checkout.

Solution Key Features

  • Self-contained unit, only requiring water & electric connections
  • No need for gas supply, flues or ventilation
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -28ºC
  • Maintains rated heating capacity down to -15ºC
  • Simple grid connection as classified as Connect & Notify
  • Hybrid function, for use with conventional boilers
  • MELCloud Wi-Fi connectivity and energy monitoring as standard
  • Multiple unit cascade function
  • Optimised low ambient defrost control and operation

Key Technical Features

Outdoor

  • Dimensions HxWxD (mm): 1350 x 1020 x 330
  • Sound Pressure Level at 1m: 53 dBA
  • ErP: A+++ (35ºC)
  • Breaker: single phase 230VAC, 40A
  • Recommended pipe size: 28mm
  • Nominal flow rate: 40L/min

Indoor

  • Dimensions HxWxD (mm): 1600 x 595 x 680
  • Breaker (A): 10 & 16
  • Pipe Size (mm): 28 / 22

14kW R32 1Ph Mono ASHP Zbdn & 200L Packaged Cylinder Pkg

Included components - Electrical

  • Immersion Heater
  • Wi-Fi Ready System Controller
  • Wi-Fi Interface
  • DHW Upper & Lower Water Temperature Thermistor
  • Flow & Return Water Temperature Thermistor

Included components - Mechanical

  • Magnetic Filter
  • Insulated Flexible Connection Pipes
  • Flow Sensor
  • Primary Circulating Pump
  • DHW Circulating Pump
  • 3-Way Motorised Diverter Valve
  • Domestic Hot Water Expansion Vessel
  • DHW Plate Heat Exchanger & Scale Trap
  • Primary System Pressure Gauge
  • Filling Loop
  • Automatic Air-Vent
  • Drain Valve
  • Strainer Valve
  • Pressure Reducing Valve
  • Temperature / Pressure Relief Valve
  • Tundish
View full details
